2016 Suburban - No Diff Fluid Specs?

nickscarcare · Post by **nickscarcare** » Mon Apr 27, 2020 7:21 am

1GNSKJKC5GR132068 Not sure if this is the right spot or not, but have a 16 Suburban and go into fluids, and no spec for front or rear differential.

timbre4 · Post by **timbre4** » Mon Apr 27, 2020 7:42 am

nickscarcare wrote:1GNSKJKC5GR132068 Not sure if this is the right spot or not, but have a 16 Suburban and go into fluids, and no spec for front or rear differential.

This is the place; inquiring now.

timbre4 · Post by **timbre4** » Mon Apr 27, 2020 8:56 am

The actual specs listed:
FRONT

: diff front A.jpg (50.23 KiB) Viewed 10301 times

FRONT

: diff front B.jpg (20.47 KiB) Viewed 10301 times

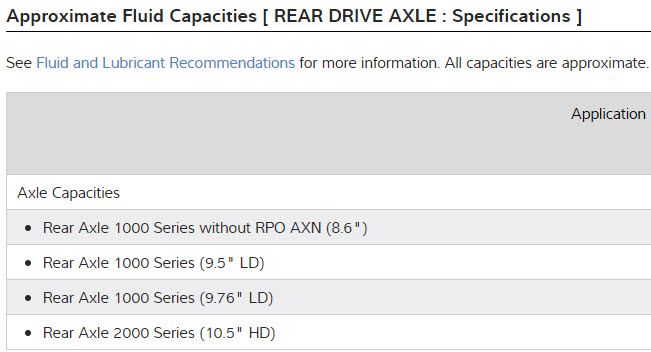

REAR

: diff rear A.jpg (63.62 KiB) Viewed 10301 times

REAR

: diff rear B.jpg (27.79 KiB) Viewed 10301 times

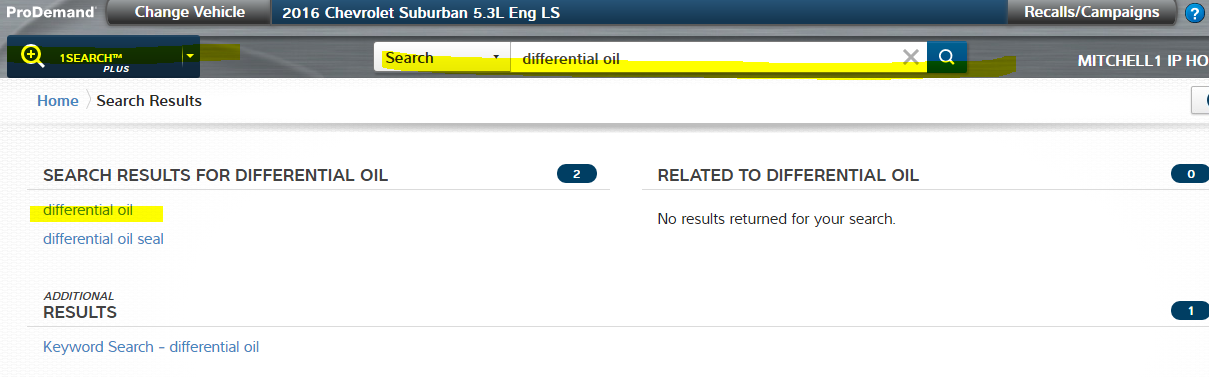

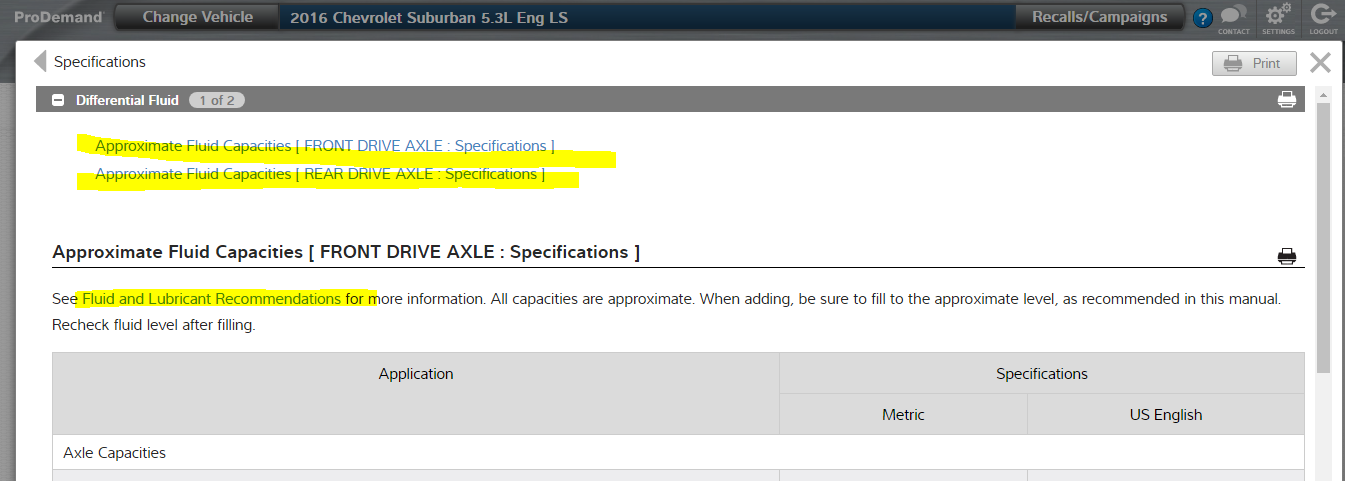

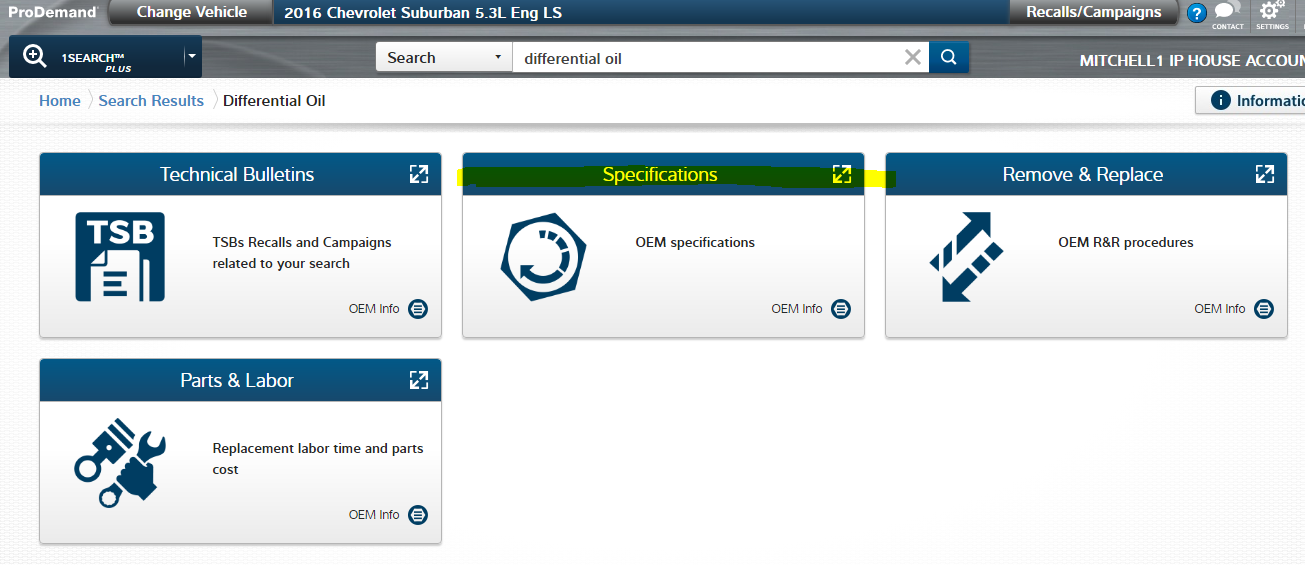

Navigation from Product Content Support:

: diff1.png (114.93 KiB) Viewed 10301 times

: diff2.png (175.71 KiB) Viewed 10301 times

: diff3.png (75.69 KiB) Viewed 10301 times

brianp87 · Post by **brianp87** » Mon Apr 27, 2020 1:13 pm

Is it shown from the management program ?

timbre4 · Post by **timbre4** » Mon Apr 27, 2020 1:17 pm

It is not included under the Fluids button.

nickscarcare · Post by **nickscarcare** » Tue Apr 28, 2020 5:56 am

Sorry yes I should have posted that it is listed under procedures, but not fluid tab, sorry, but you did see that.
